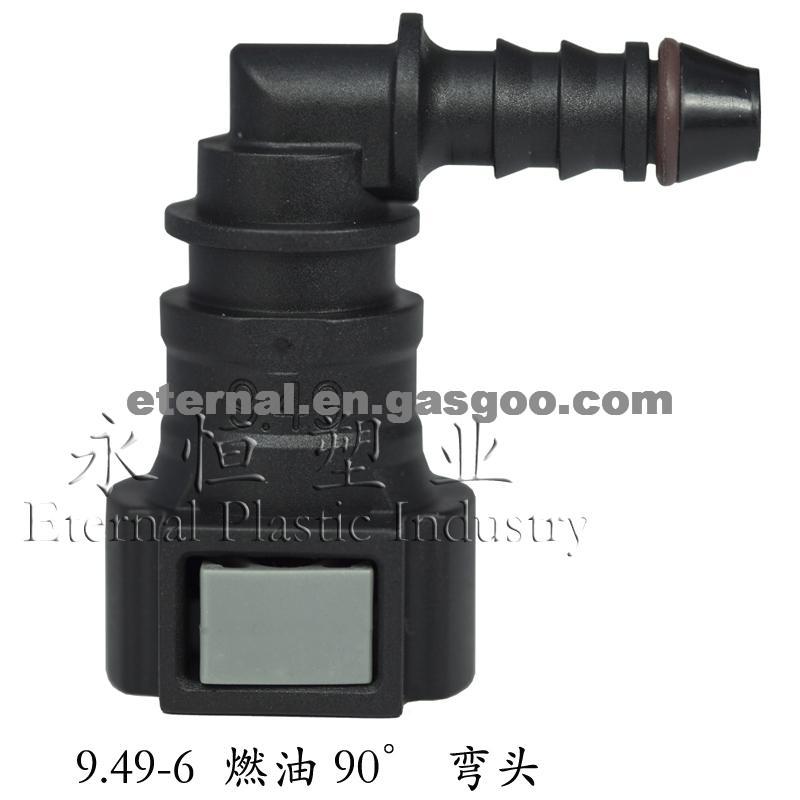

Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 6mm
Color:Black
Gender:Female
Material:Plastic
Shape:Square
Any cars
Item:fuel line quick connector 9.49mm 90° Item number:C3 Size:Ø9.49mm--90° Hose fitted:ID x OD 6.0x8.0mm or 6.35x8.35mm Material:PA12+30%GF Media:fuel line system Color:Black with gray locking spring MOQ:Any quantities to begin business! Sample:can be provided to quality test Security: Quick connector adopts double seal ring radial sealing structure. In O-ring is made of modified rubber which is custom-made to suit fluid physical and chemical properties from aging,corrosion and swelling. Out o-ring is separated by spacer ring for corresponding activity space between the two sealing rings to avoid rubber substrate bonding.Out O-ring is made of synthetic rubber which increases mechanical properties to prevent from air aging. Both O-rings and spacer ring are firmly fixed on the body through elastic bayonet of securing ring.No sealing ring drop or displacement phenomenon occurs to greatly guarantee the security of seal.
