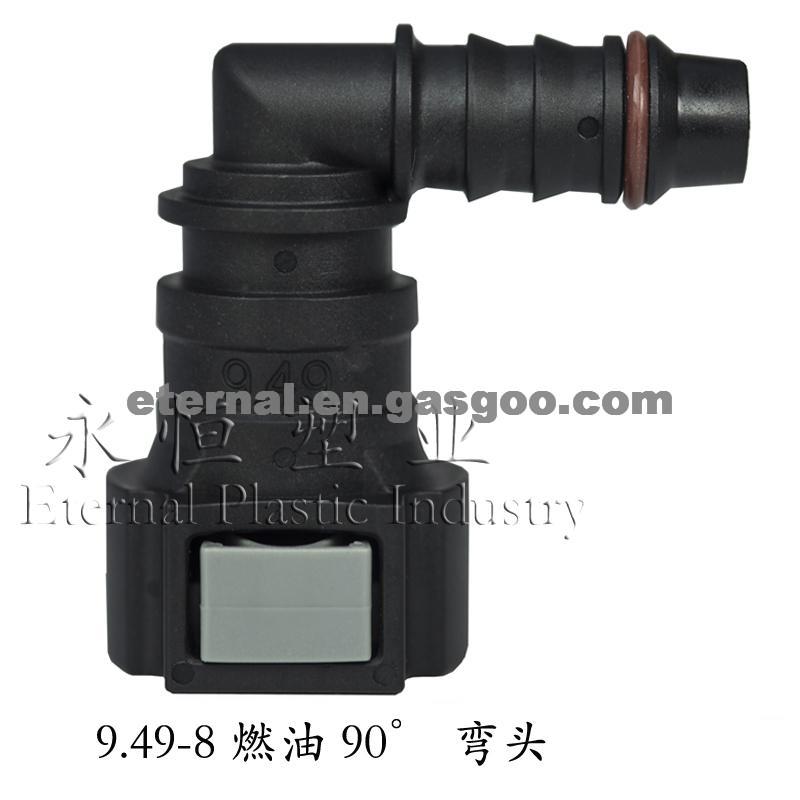

Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm

Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm
Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm
Previous
Next
Minimum Order:

1000PCS

Export Ratio:

51% - 60%

Unit Price:

Less Than 1 Dollar

Samples:

Free

Place of Region:

CHINA

Payment Terms:

L/C,T/T

Price Terms:

FOB

Delivery Port:

Ningbo,Shanghai

Delivery Time:

Usually About 7 Days

Market Type:

After Market

Packing:

Regular Package

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

Any cars

Product Description:

Item:fuel line quick connector 9.49mm 90°
Item number:C4
Size:Ø9.49mm--90°
Hose fitted:ID x OD 8.0x10.0mm or 8.35x10.35mm
Material:PA12+30%GF
Media:fuel line system
Color:Black with gray locking spring
MOQ:Any quantities to begin business!

Sample:can be provided to quality test

Quick ocnnector assembly & disassembly operations method:
1.Eternal quick connector is made up of body,in O-ring,out O-ring,spacer ring,securing ring and locking spring.
2.Insert the mating tube end piece to connector,due to the function of flexible locking spring and snap fastener,they are joined together,then pull back to assure a complete connection so that quick connector coupling can work well.
3.While in disassembly,firstly push in male end piece,then press locking spring ends till expansion from the middle,the connector can be easily pulled out.
4.Lubricated with SAE 30-weight oil before re-connecting.




Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm
Fuel Line Quick Connector Of 9.49 ELBOW To Hose ID 8mm
