Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm

Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm
Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm
Previous
Next
Minimum Order:

1000PCS

Export Ratio:

51% - 60%

Unit Price:

Ask Sales

Samples:

Free

Place of Region:

CHINA

Payment Terms:

L/C,T/T

Price Terms:

FOB

Delivery Port:

Ningbo,Shanghai

Delivery Time:

Usually About 7 Days

Market Type:

After Market

Packing:

Regular Package

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

Any cars

Product Description:

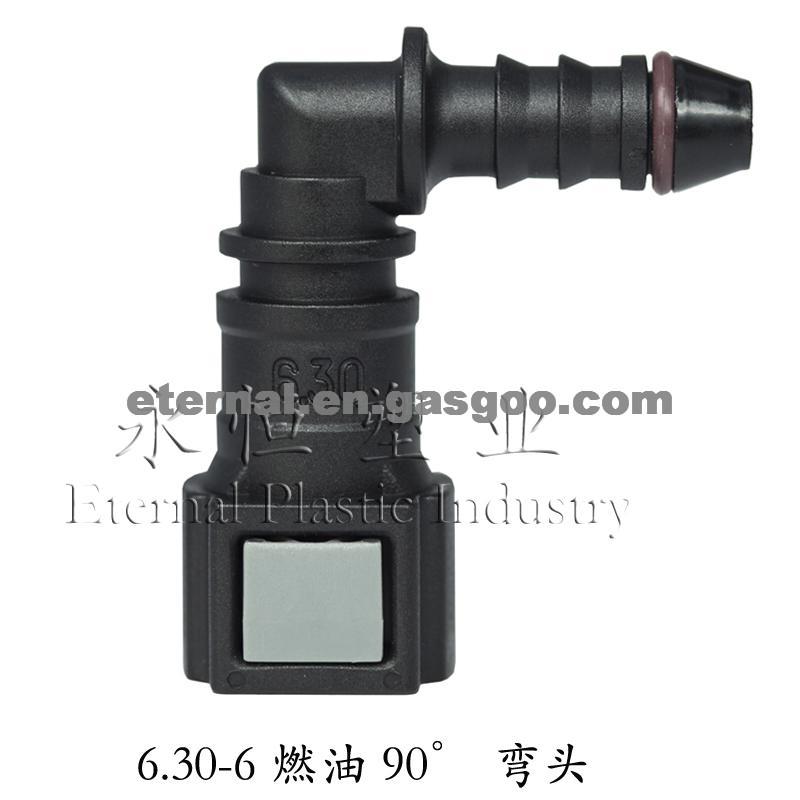

Item:fuel line quick connector 6.3mm elbow
Size:Ø6.30mm--Ø6.35mm 90°
Hose fitted:ID x OD 6.0x8.0mm or 6.35x8.35mm
Material:PA12+30%GF
Media:fuel line system
Color:Black with gray locking spring
Female quick connector

Security:
Quick connector adopts double seal ring radial sealing structure.
In O-ring is made of modified rubber which is custom-made to suit fluid physical and chemical properties from aging,corrosion and swelling.
Out o-ring is separated by spacer ring for corresponding activity space between the two sealing rings to avoid rubber substrate bonding.Out O-ring is made of synthetic rubber which increases mechanical properties to prevent from air aging.
Both O-rings and spacer ring are firmly fixed on the body through elastic bayonet of securing ring.No sealing ring drop or displacement phenomenon occurs to greatly guarantee the security of seal.

Independent development:
A high heat change resistant nylon and its preparation method patent number:201110107011.6


Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm
Fuel Line Quick Connector Of 6.3 Elbow To Hose ID 6mm
