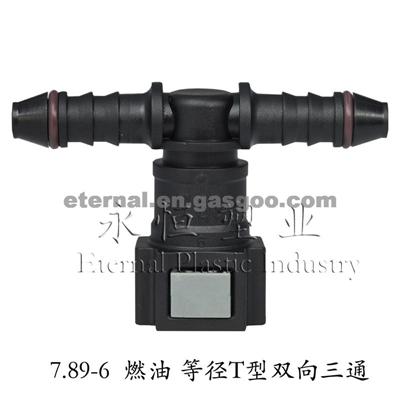

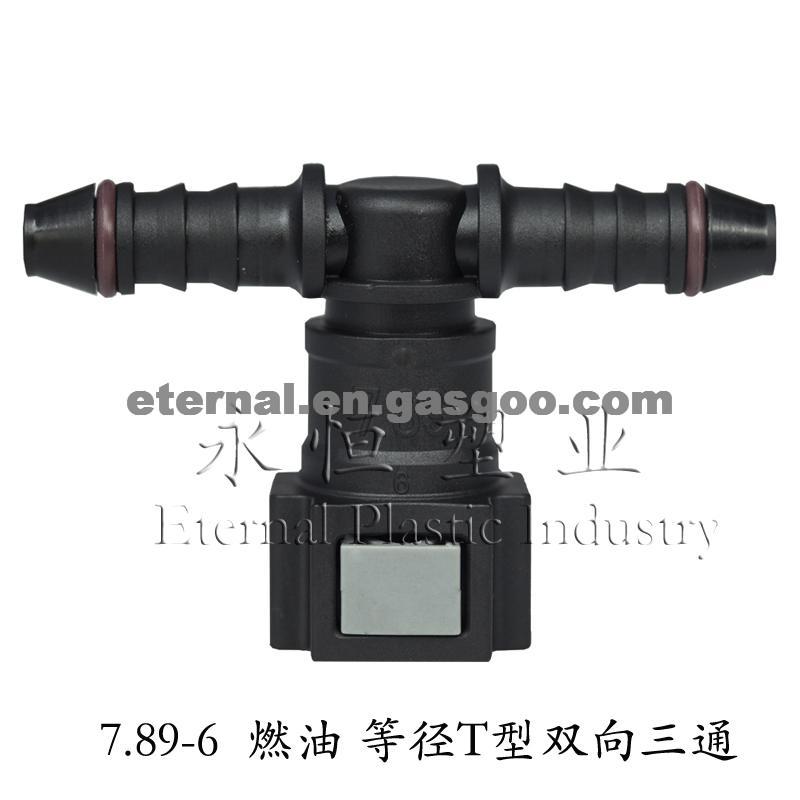

Fuel Line Quick Connector Of 7.89 3 Ways With 2 O-Rings

Product Name:

Fuel Line Quick Connector Of 7.89 3 Ways With 2 O-Rings

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

Any cars

Product Description:

Item:fuel line quick connector 7.89mm 3 ways
Item number:B6
Size:Ø7.89mm--3 ways 90° and 90° fir tree
Hose fitted:ID x OD 6.0x8.0mm or 6.35x8.35mm
Material:PA12+30%GF
Media:fuel line system
Color:Black with gray locking spring
MOQ:Any quantities to begin business!

Quick connector working environment:
a.       Gasoline and diesel fuel delivery systems,Ethanol and methanol delivery system or their vapor venting or evaporative emission control systems.
b.       Operating pressure 500kPa,5bar,(72 psig)
c.       Operating vacuum -50kPa,-0.55bar(-7.2psig)
d.       Operating temperature -40(-40) to 115 (239),short time 150

Eternal connector:
There are several Fir tree options at the Eternal endform connecting to the hose:
Connect nylon hose
-Tube size from 3.35x4.5 to 14.35x16.35mm
-The fir tree end form with or without O-ring

Connect rubber hose
-Tube size from ID 3mm to 16mm
-End form with or without rib lines.
