Linhai Yongheng Auto Technology Co. , Ltd Main Products :Quick Connectors End-piece Hose Connectors Fuel Hose Assctors Fuel Hose Assemblies
HomeProductsFuel line quick connector fittingsFuel Line Quick Connector Of 7.89 3 Ways

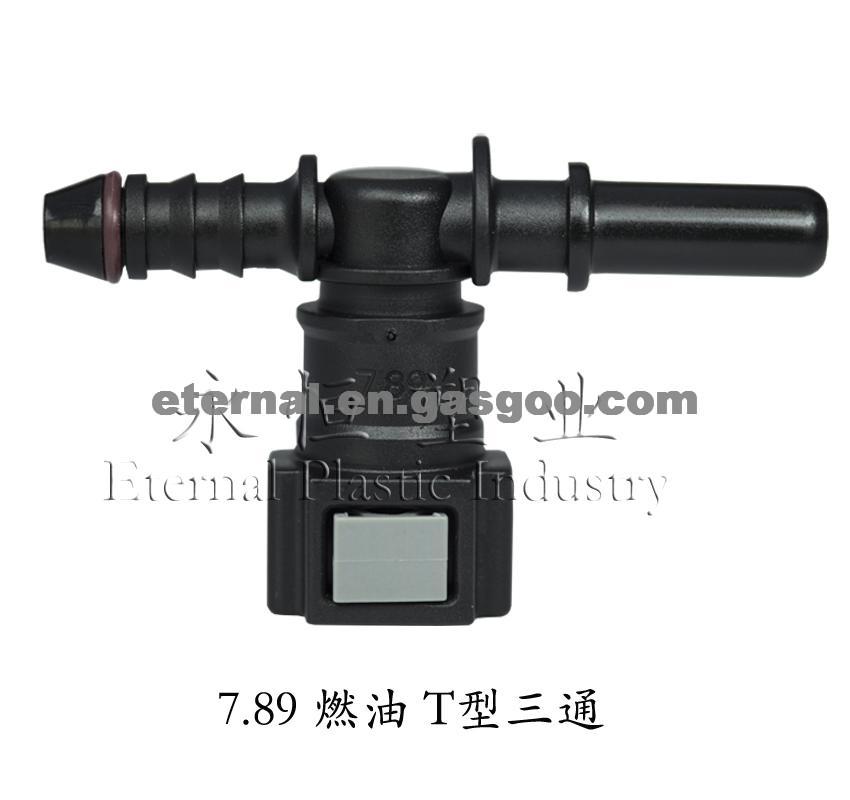

Fuel Line Quick Connector Of 7.89 3 Ways

Fuel Line Quick Connector Of 7.89 3 Ways
Fuel Line Quick Connector Of 7.89 3 Ways
Previous
Next
Minimum Order:

1000PCS

Export Ratio:

51% - 60%

Unit Price:

Less Than 1 Dollar

Samples:

Free

Place of Region:

CHINA

Payment Terms:

L/C,T/T

Price Terms:

FOB

Delivery Port:

Ningbo,Shanghai

Delivery Time:

Usually About 7 Days

Market Type:

After Market

Packing:

Regular Package

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

Fuel Line Quick Connector Of 7.89 3 Ways

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

Any cars

Product Description:

Item:fuel line quick connector 7.89mm 3 ways
Item number:B6
Size:Ø7.89mm--3 ways(with end piece)
Hose fitted:ID x OD 6.0x8.0mm or 6.35x8.35mm
Material:PA12+30%GF
Media:fuel line system
Color:Black with gray locking spring
MOQ:Any quantities to begin business!


Quick connector working environment:
a.       Gasoline and diesel fuel delivery systems,Ethanol and methanol delivery system or their vapor venting or evaporative emission control systems.
b.       Operating pressure 500kPa,5bar,(72 psig)
c.       Operating vacuum -50kPa,-0.55bar(-7.2psig)
d.       Operating temperature -40(-40) to 115 (239),short time 150

Eternal connector:
There are several Fir tree options at the Eternal endform connecting to the hose:
Connect nylon hose
-Tube size from 3.35x4.5 to 14.35x16.35mm
-The fir tree end form with or without O-ring

Connect rubber hose
-Tube size from ID 3mm to 16mm
-End form with or without rib lines.


Fuel Line Quick Connector Of 7.89 3 Ways
Fuel Line Quick Connector Of 7.89 3 Ways
