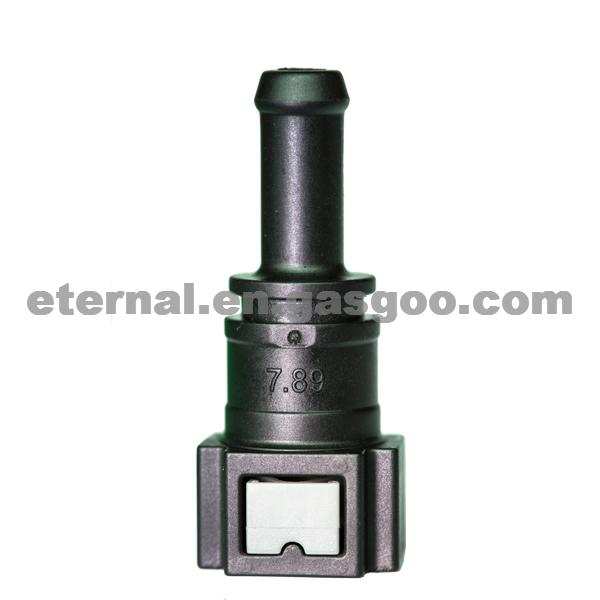

Product Name:
Fuel Line Quick Connector 5/16''
Product Attribute:
Color:Black
Gender :Female
Material:Plastic
Shape :Square
Application:
ALL CARS
Product Description:
Automotive Quick Connector OF 7.89mm --rubber hose
Item:fuel line quick connector 7.89mm to ruber hose 7.5mm,1800
Item number:B5
Size:Ø7.89mm-- 7.5mm
Material:PA12+30%GF
Media:Fuel line,Gasoline,diesel
Color:Black with grey locking spring
MOQ:Any quantities to start business
Connect rubber hose
-Tube size from ID 3mm to 16mm
-End form with or without rib lines.
through elastic bayonet of securing ring.No sealing ring drop or displacement phenomenon occurs to greatly guarantee the security of seal.
Standard materials
SAE connectors are made up of body, in O-ring, out O-ring,spacer ring,securing ring and locking spring.
Body: PA12 with 20 - 50% glass fiber content.
O-ring: FKM and FVMQ
Technical features
|
Medium
|
gasoline , diesel ,air ,water ,oil vapor
|
|
Operating pressure
|
approx. 10 bar excess pressure
|
|
Operating temperatures
|
-40°C up to +115°C
engine compartment:-40°C up to +115°C
short time up to +150°C
|
Standard:
SAE J2044,TS 16949;
Product advantages
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return lines
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control lines
Catalogue
More than 100 types of connectors for you to chose
