Automotive Quick Connector 7.89mm-To Rubber Hose

Automotive Quick Connector 7.89mm-To Rubber Hose
Automotive Quick Connector 7.89mm-To Rubber Hose
Minimum Order:

100PCS

Export Ratio:

41% - 50%

Unit Price:

USD0.8/PC

Samples:

Free

Place of Region:

CHINA

Payment Terms:

L/C,T/T,CASH

Price Terms:

EXW

Delivery Port:

Shanghai,Ningbo

Delivery Time:

10days

Market Type:

After Market

Packing:

Regular Package

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

Automotive Quick Connector 7.89mm-To Rubber Hose

Product Attribute:

Color:Black

Gender :Female

Material:Plastic

Shape :Square

Application:

ALL CARS

Product Description:

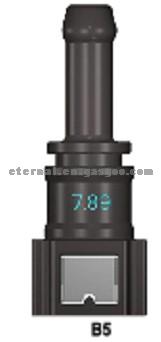

Automotive Quick Connector female of 7.89mm --to rubber hose
Item:fuel line quick connector 7.89mm to7.5

Item number:B5
Size:Ø7.89mm-- ID 7.5mm
Hose fitted:rubber hose 7.5
Material:PA12+30%GF
Media:Fuel line,Gasoline,diesel
Color:Black with grey locking spring
MOQ:Any quantities to start business


Yongheng connectors Advantages:
1.we improved the locking spring design,the little change can avoid installation error for any of operators who have little experience doing this job.
 This little change will increase pull-apart effort when mating male end-piece.

2.We improved the injection molds to add O-ring on fir tree,which will increase the safety capability when install to nylon hose.



Description:  Fuel quick connector are made from polyamide 12 with 20-50% glass fiber content .The O ring are made of FKM and FVMQ as standard equipment.

Quick connector working environment:
a.       Gasoline and diesel fuel delivery systems,Ethanol and methanol delivery system or their vapor venting or evaporative emission control systems.
b.       Operating pressure 500kPa,5bar,(72 psig)
c.       Operating vacuum -50kPa,-0.55bar(-7.2psig)
d.       Operating temperature -40(-40) to 115 (239),short time 150



Automotive Quick Connector 7.89mm-To Rubber Hose
Automotive Quick Connector 7.89mm-To Rubber Hose
