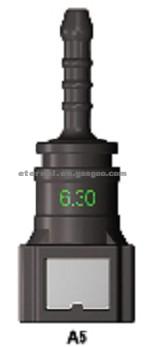

Rubber Hose Connector 6.3mm--ID 5.5mm,180 Degree
Color:Black
Gender:Female
Material:Plastic
Shape:Square
All cars
Automotive Quick Connector female of 6.3mm --ID5.5 straight Item:rubber hose quick connector 6.3mm to 5.5mm,straight Item number:A5 Size:Ø6.3mm-- ID 5.5mm Fitted to rubber hose 5.5 internal Material:PA12+30%GF Media:Fuel line,Gasoline,diesel Color:Black with grey locking spring MOQ:Any quantities to start business Yongheng connectors Advantage: 1.we improved the locking spring design,the little change can avoid installation error for any of operators who have little experience doing this job. 2.We developed series of quick connector to fit rubber hose. Quick ocnnector assembly & disassembly operations method: 1.Yongheng quick connector is made up of body,in O-ring,out O-ring,spacer ring,securing ring and locking spring. 2.Insert the mating tube end piece to connector,due to the function of flexible locking spring and snap fastener,they are joined together,then pull back to assure a complete connection so that quick connector coupling can work well. 3.While in disassembly,firstly push in male end piece,then press locking spring ends till expansion from the middle,the connector can be easily pulled out. 4.Lubricated with SAE 30-weight oil before re-connecting.
