Automotive Quick Connector OF 6.3mm --ID3

Product Name:

Automotive Quick Connector OF 6.3mm --ID3

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

ANY CARS, EFI

Product Description:

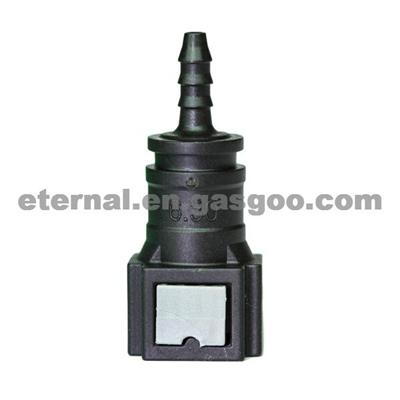

Automotive Quick Connector OF 6.3mm --ID3
Item:fuel line quick connector 6.3mm to hose ID 3mm,straight
Item number:A1
Size:Ø6.3mm-- ID 3mm
Hose fitted:ID x OD 3.0x5.0mm or 3.35x4.5mm
Material:PA12+30%GF
Media:Fuel line,Gasoline,diesel
Color:Black with grey locking spring
MOQ:Any quantities to start business

Quick ocnnector assembly & disassembly operations method:
1.Yongheng quick connector is made up of body,in O-ring,out O-ring,spacer ring,securing ring and locking spring.
2.Insert the mating tube end piece to connector,due to the function of flexible locking spring and snap fastener,they are joined together,then pull back to assure a complete connection so that quick connector coupling can work well.
3.While in disassembly,firstly push in male end piece,then press locking spring ends till expansion from the middle,the connector can be easily pulled out.
4.Lubricated with SAE 30-weight oil before re-connecting.

Yongheng quick connectors can be used for both line-to line as well as line-to-device connections.
-Fuel lines
-Tank breathing
-Ventilation and exhaust lines
-Secondary air lines
-Crank case ventilation lines
-Oil cooler lines
-Vacuum brake lines
