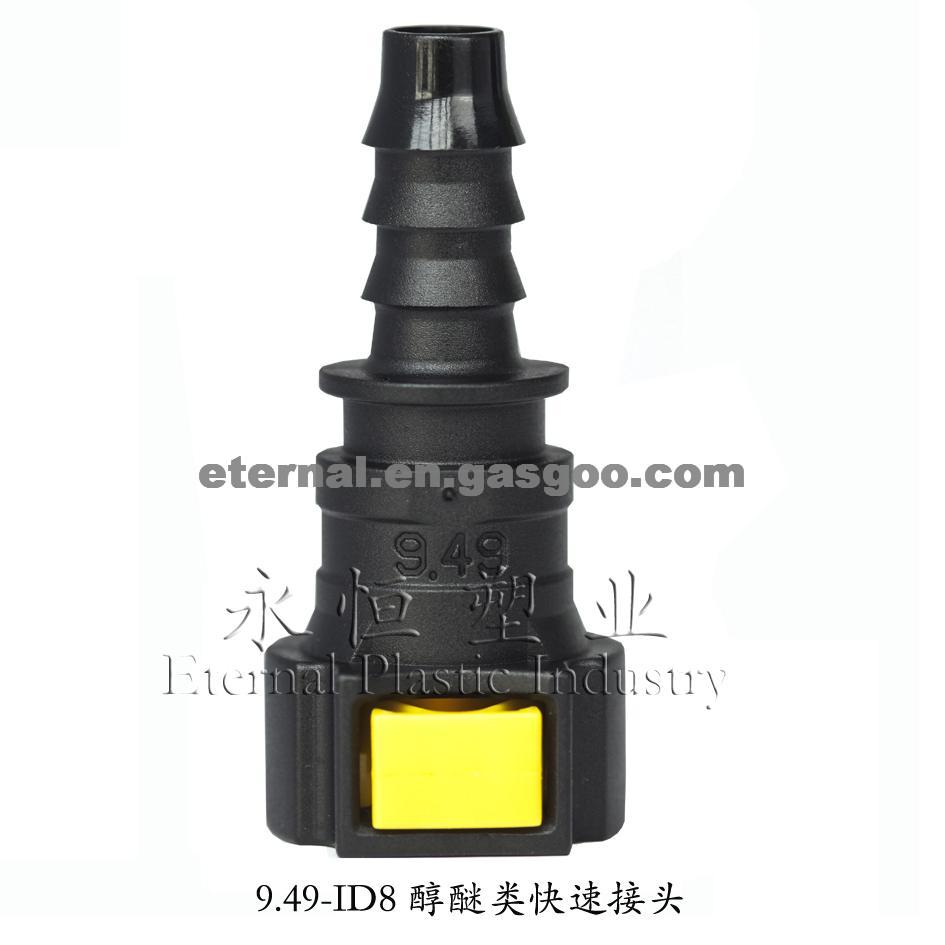

Ethanol &Methanol Line QC 3/8'' Elbow To Hose ID8mm
Color:Black
Gender:Female
Material:Plastic
Shape:Square
Any cars
Item:Ethanol &methanol line quick connector 9.49mm 180° Item number:C4 Size:Ø9.49mm-- 180° Hose fitted:ID x OD 8.0x10.0mm or 7.95x9.95mm Material:PA12+30%GF Media:Ethanol &Methanol line system Color:Black with red locking spring MOQ:Any quantities to start business Item:Ethanol &Methanol line quick connector 9.49mm Item number:C3 Size:Ø7.89mm-- 90° Hose fitted:ID x OD 6.0x8.0mm or 6.35x8.35mm Material:PA12+30%GF Media:Ethanol & Methanol line system Color:Black with yellow locking spring MOQ:Any quantities to start business Security: Quick connector adopts double seal ring radial sealing structure. In O-ring is made of modified rubber which is custom-made to suit fluid physical and chemical properties from aging,corrosion and swelling. Out o-ring is separated by spacer ring for corresponding activity space between the two sealing rings to avoid rubber substrate bonding.Out O-ring is made of synthetic rubber which increases mechanical properties to prevent from air aging. Both O-rings and spacer ring are firmly fixed on the body through elastic bayonet of securing ring.No sealing ring drop or displacement phenomenon occurs to greatly guarantee the security of seal. Independent development: A high heat change resistant nylon and its preparation method patent number:201110107011.6
