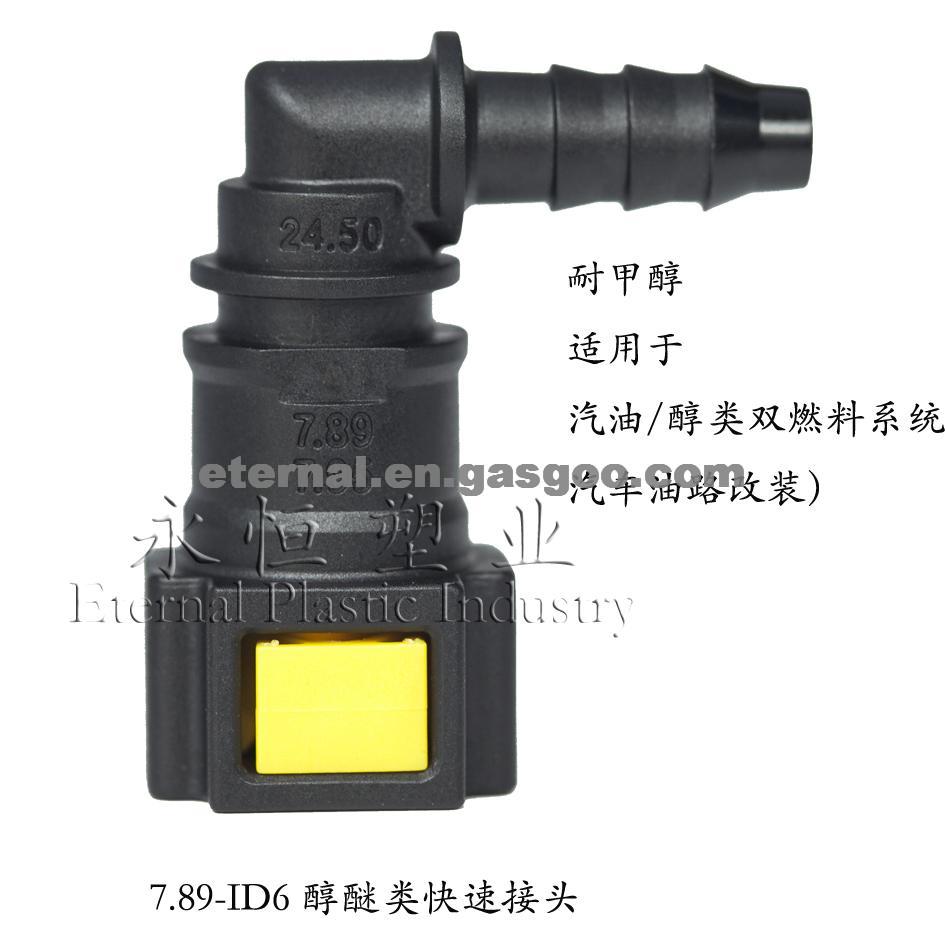

Ethanol &Methanol Line Quick Connector 5/16'' Elbow To Hose ID 6mm

Product Name:

Ethanol &Methanol Line Quick Connector 5/16'' Elbow To Hose ID 6mm

Product Attribute:

Color:Black

Gender:Female

Material:Plastic

Shape:Square

Application:

Any cars

Product Description:

Item:Ethanol &Methanol line quick connector 7.89mm 90°
Item number:B3
Size:Ø7.89mm-- 90°
Hose fitted:ID x OD 6.0x8.0mm
Material:PA12+30%GF
Media:Ethanol & Methanol line system
Color:Black with yellow locking spring
MOQ:Any quantities to start business

Quick connector working environment:
a.       Gasoline and diesel fuel delivery systems,Ethanol and methanol delivery system or their vapor venting or evaporative emission control systems.
b.       Operating pressure 500kPa,5bar,(72 psig)
c.       Operating vacuum -50kPa,-0.55bar(-7.2psig)
d.       Operating temperature -40(-40) to 115 (239),short time 150
