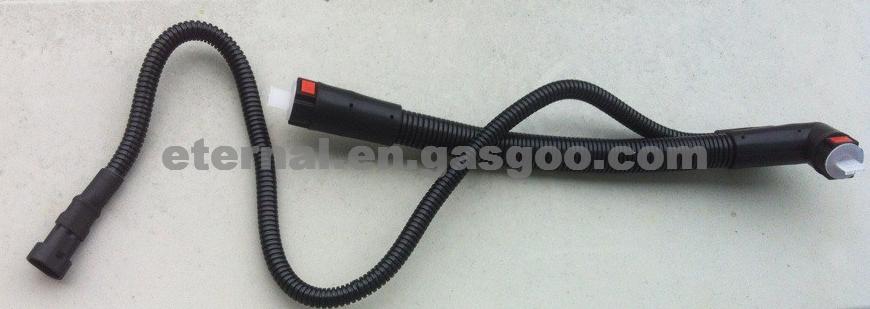

Permeation-Resistant Urea Line Tube

Language Translator

Permeation-Resistant Urea Line Tube - img2

Permeation-Resistant Urea Line Tube - img3

Minimum Order:	100PCS
Export Ratio:	51% - 60%
Unit Price:	As Per Sales
Samples:	Charge
Place of Region:	CN
Payment Terms:	L/C,T/T
Price Terms:	FOB
Delivery Port:	Shanghai,Ningbo
Delivery Time:	10days
Market Type:	After Market
Packing:	Regular Package
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East

Product Details

Product Name:

Permeation-Resistant Urea Line Tube

Product Attribute:

Material:Plastic

Size:3,4,6mm

Color:Black

Application:

scr System cars

Product Description:

SCR system adopts multilayer nylon tubes which made of ETFE/PA2,These tubes have excellent performance of corrosion resistance and low Urea solution permeation.They meet the requirements of SAE J744,SCR system is made up of supplying tubes,returning tubes and injection tubes.Tube construction details are as follows:

Suppling tube construction details		Returning tube construction details		Injection tube construction details
Material	ETFE/PA12	Material	ETFE/PA12	Material	ETFE/PA12
Inside diameter	6.0mm	Inside diameter	4.0mm	Inside diameter	3.0mm
Outside diameter	8.0mm	Outside diameter	6.0mm	Outside diameter	5.0mm
Wall thickness	1.0mm	Wall thickness	1.0mm	Wall thickness	1.0mm
Bending radius	42mm	Bending radius	35mm	Bending radius	30mm
Burst pressure	>6.9Mpa(at 24)	Burst pressure	>8.3Mpa(at 24)	Burst pressure	>8.3Mpa(at 24)
Temperature range	-60~+125	Temperature range	-60~ +125	Temperature range	-60~+125

Inner tubes are the same as the above,but with the funtion of self-regulating heating.
Voltage:U=24VDC(Peak Value:U=32DVC)
Max Temperature:<70degree
Specific quick connectors are fitted at the ends

Permeation-Resistant Urea Line Tube
